Generate JSON Schema from Diagram, Better C# and Java Source Code Generation

Software Ideas Modeler 12.71 adds new source code generation options - you can generate JSON schema from UML class diagrams. C# and Java source code generation templates support more language features. The routing of rectangular relationships was slightly improved.

New Features

  • Added JSON schema generation from class diagram
  • Added shortcut keys CTRL+Arrow for moving elements by a pixel
  • Added support for static attributes and static nested classes to Java source code generator
  • Added support for Flags enumerations to C# source code generation
  • Added support for nested enumerations to C# source code generation
  • Adjusted rectangular relationship routing

Fixed Bugs

  • Fixed application crash when choosing Connect with New Element from the right-drag context menu
  • Fixed application crash related to GIT sidebar
  • Fixed offering read-only property Is active for lifeline whose usage led to an application crash

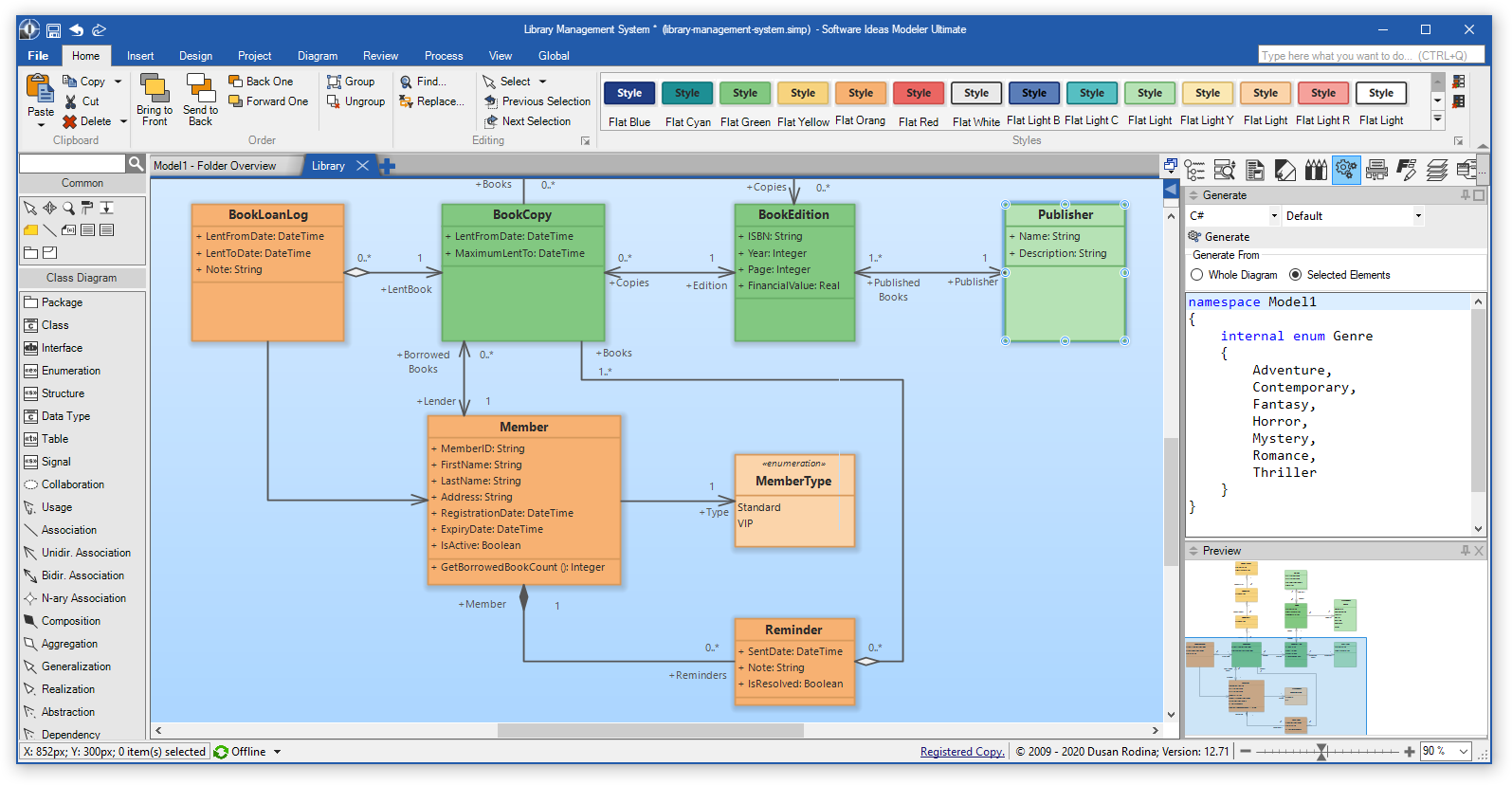

UML Editor - Software Ideas Modeler 12.71
UML Editor - Software Ideas Modeler 12.71
