Better Object Model Information and Navigation - Software Ideas Modeler 13.45
The new version of Software Ideas Modeler provides better information about related elements for the selected element and allows you to navigate to other related elements easily. It adds a new option to hierarchy generation - label specification for the branches. C++ source generation gets support for namespaces and pure virtual methods.
Navigate To Related Elements

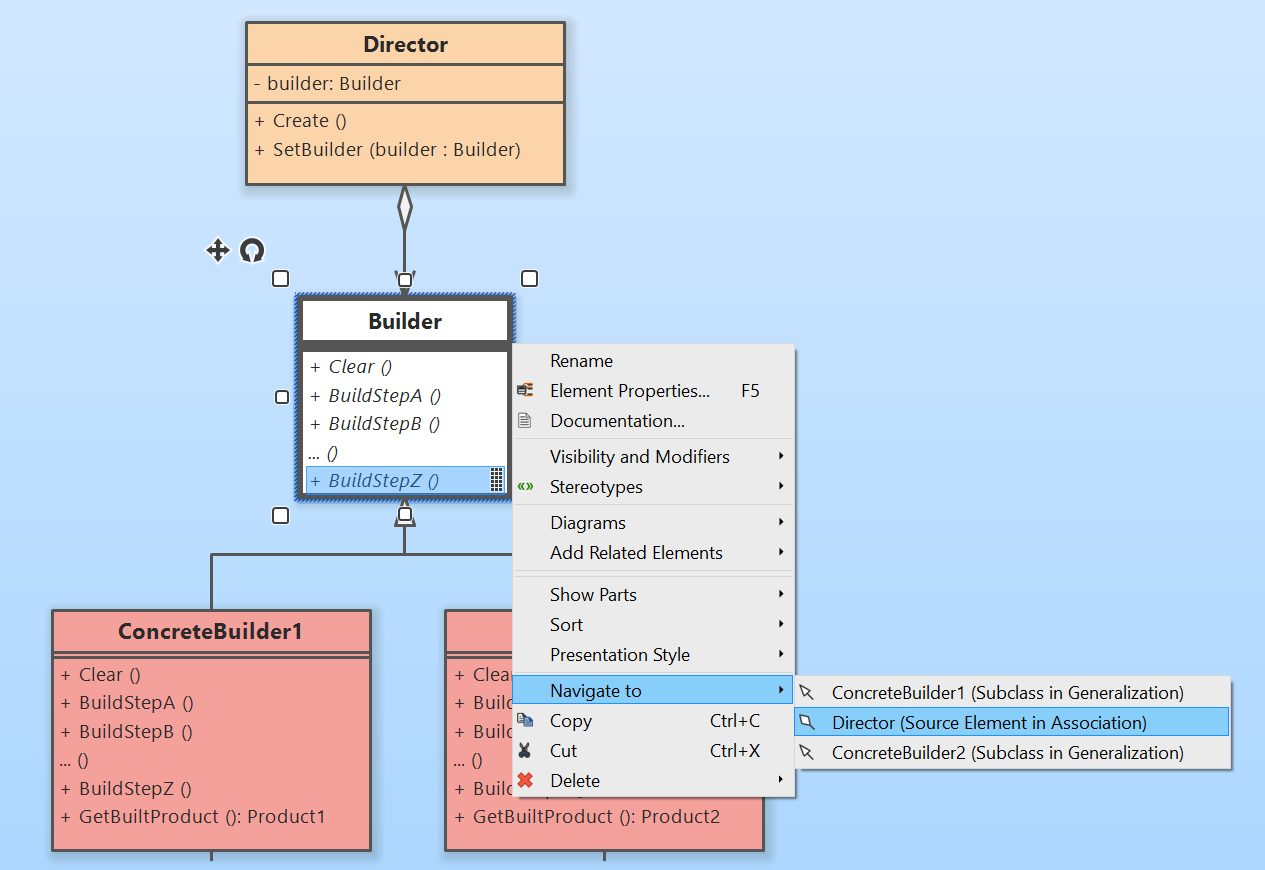

Navigate To - context menu
Improved Related Elements Information

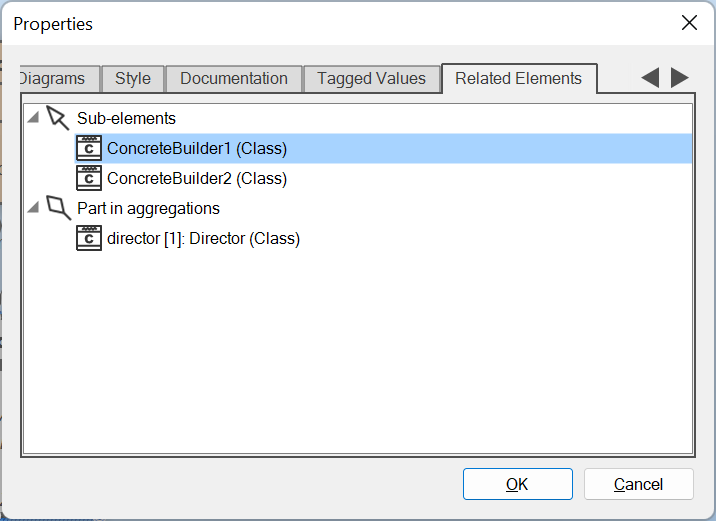

Improved Related Elements in Properties dialog and Element Browser
New Hierarchy Generation Option

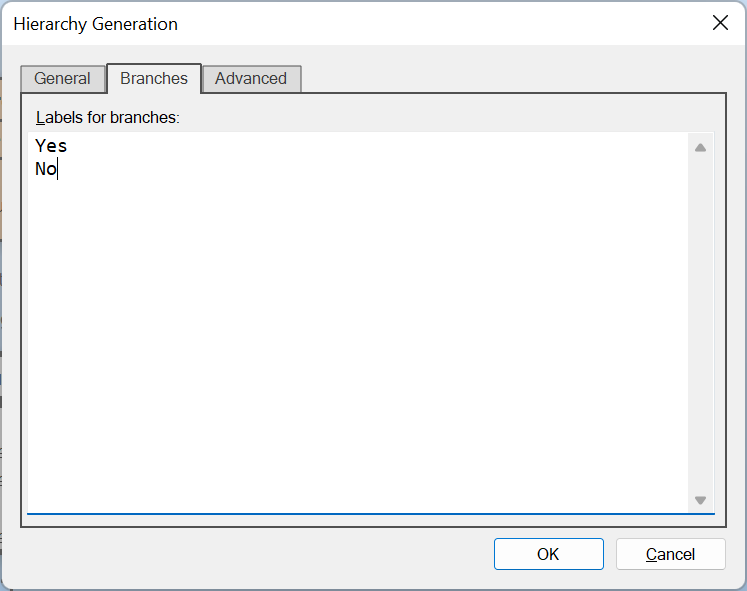

Labels for braches in generated hierarchy diagrams
New Features and Improvements
- Improved hierarchy generation - added branch labels definition
- Improved Related Elements tab in the Properties dialog and Element Browser
- Aggregation type of UML Association can be set using the context menu
- Line indentation is preserved for new lines in the definition text box in the Hierarchy Generation dialog
- Added support for namespaces to C++ source code generation [RQ#1698]
- Added support for pure virtual (abstract) methods to C++ source code generation [RQ#1700]
- UI Grid columns can be set according to the class by dropping the class over the grid
- Attributes with object types are represented with combo boxes in UI Field List
- Added 'Navigate To' submenu to the context menu for navigation to related elements
- Context submenu 'Select' si hidden when there is only one element at the current position
- Replace some generic icons with specific ones
Fixed Bugs
- Fixed color palette drop-down layout in ribbon for high DPIs
- Fixed unnecessary backup recovery requests when opening project files
- Fixed search in the Options dialog
- Fixed name styling for IDEF1X entity
- Fixed incorrect rendering of UI Field List for some cases
- Fixed filtering by type in Element Browser
- Fixed canceling filter after switching back to the Element Browser tab
