Customizing Scrollbar (Wireframing)

Help|Tutorials|Tips and Tricks|Diagramming|Wireframing| 8 November 2024 | Dusan Rodina - softwareideas.net
This tutorial explains how to customize the scrollbar element in Software Ideas Modeler for UI wireframing. Learn how to adjust padding, rounding, and button sizing to create a tailored scrollbar style. Follow these steps to enhance the visual consistency and functionality of your interface designs.

Scrollbars are a critical component in UI wireframing, allowing users to navigate through overflow content with ease. In Software Ideas Modeler, you can personalize the look and feel of scrollbars to match the design of your application or wireframe. This tutorial will guide you through the process of styling and adjusting scrollbars to create the exact appearance you need.

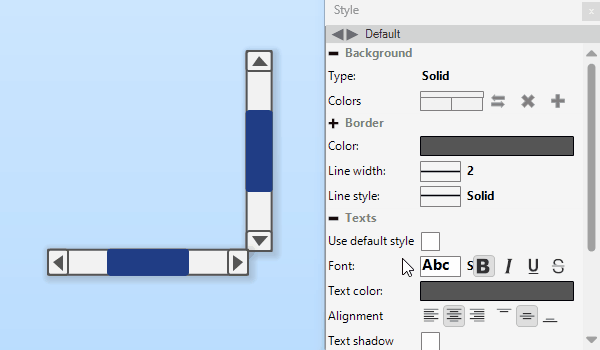

Adjusting UI scrollbars
Adjusting UI scrollbars

Accessing Scrollbar Style Settings

To start customizing the scrollbar, first select the scrollbar element in your wireframe. You can find all styling options in the Style sidebar, which is accessible from the main interface.

Adjusting Scrollbar Padding

To control the size of the scrollbar arrows:

  • Use the Padding attribute in the Style sidebar.
  • Reducing padding will enlarge the arrows, while increasing it will make them smaller.
  • This attribute affects both the offset from the edge and the size of the arrows.

Customizing the Thumb Size

The thumb, or draggable part of the scrollbar, can be resized and positioned using padding adjustments as well. Modify the Field Padding attribute to set the offset and size of the thumb, allowing for more precise control over the scrollbar’s appearance.

Rounding for Rounded Visuals

If you prefer a smoother, rounded appearance:

  • Adjust the Rounding attribute to add curvature to the scrollbar's edges.
  • Enter a larger value for more pronounced rounding or zero for a sharp-edged, square look.

Modifying Scroll Button Size

The Proportion Modifier attribute changes the size of the scroll buttons:

  • Increase the value to make the buttons larger, or decrease it to shrink them.
  • This can help emphasize the scroll buttons or make them more subtle.

Separate or Unified Scroll Buttons

You can choose whether to separate the scroll buttons from the scrollbar or keep them unified as simple arrows:

  • Right-click on the scrollbar element and select Modifiers > Separate Buttons from the context menu.
  • When enabled, the up and down buttons will appear in their own boxes. When disabled, only the arrows are displayed without separate containers.

Note: This separation option is a property of the scrollbar element itself rather than a general style setting.

Alternatively, you can also adjust this setting:

  • Via the Properties sidebar by selecting the scrollbar.
  • Through the Properties Dialog to enable or disable the separate button display.
