Your Diagramming Tool for Year 2020 - Enhanced Diagramming and Overall Stability - Software Ideas Modeler 12.05
Software Ideas Modeler 12.05 introduces small features which make the work with relationships and attributes in UML diagrams faster.
The new version of this diagramming software brings 6 small improvements and it fixes 14 found bugs.

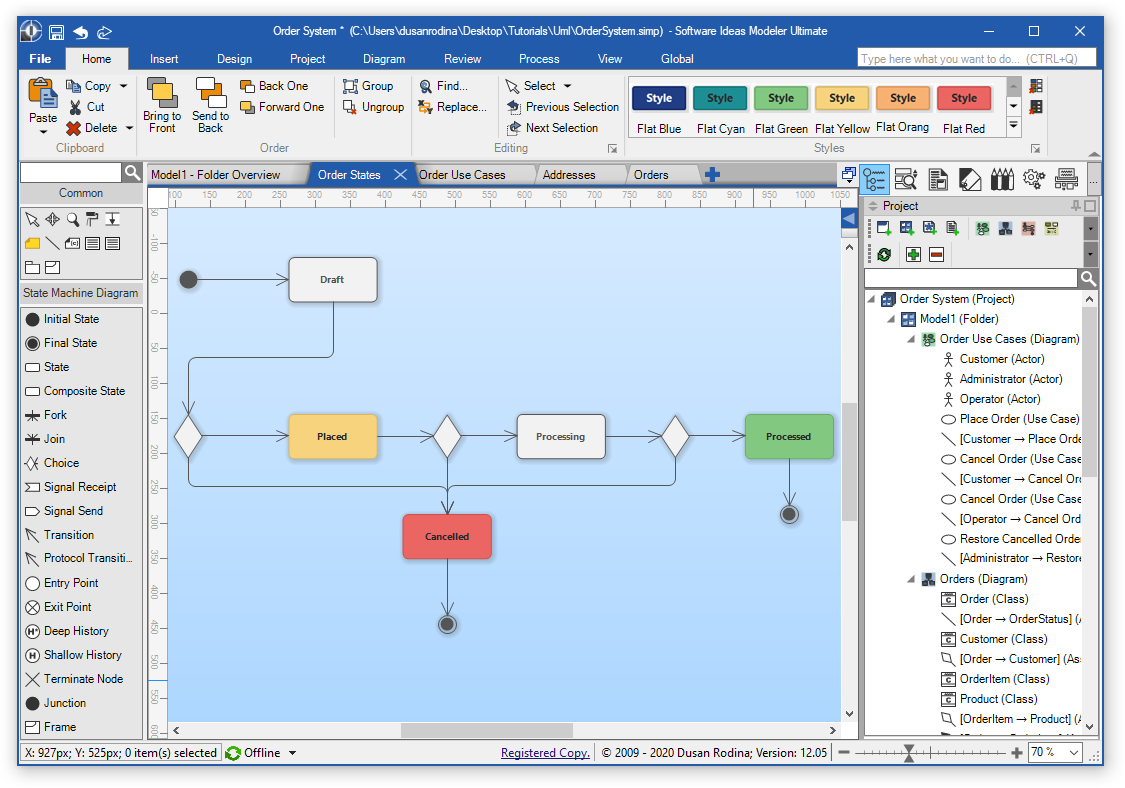

Software Ideas Modeler 12.05 - Main Window
Adding Attributes by Association Roles
Adding Attributes to UML Classes by Association Roles
Set Attribute Type using Drag & Drop
Set Attribute Type using Drag & Drop
New Features and Improvements
- Relationship can be generated for UML class attribute by its type
- Added context toolbar button for adding attribute by start/end role of association to a class
- Color of icons in quick access bar is adjusted to background color which will prevent invisible icons - e.g. white icon on white background
- Type of attribute and return type of operation can be set using drag&drop
- More polished menus for lower editions
- Improved aligning group of elements to snap lines
Fixed Bugs
- Fixed relationship end auto side resolution for relationships with several control points
- Fixed parsing last column when its line does not end with comma (SQL DDL parsing)
- Fixed refreshing recent project list during resizing
- Fixed shape parameter limits for beveled rectangles
- Fixed undo after editing field style (e.g. font)
- Fixed inserting unconnected relationships do diagram using Source Code Reverse Engineering
- Fixed wrong serialization of properties associated to classes when copying classes
- Fixed application crash when try to edit tagged value when no tagged value is selected
- Fixed duplicating persons in projects
- Fixed some localization strings
- Fixed application crash when saving a user interface diagram with a grid
- Fixed saving images
- Fixed unlocalized texts in items added to quick access bar after application start
- Fixed application crash when trying to split a relationship with a dropped element
