Data Model Diagram - Visualizing Data Structures

Choosing the Right Data Model Diagram Type

The choice of data model diagram depends on several factors:

• Project phase: Use Chen diagrams for early conceptual modeling, ERDs for detailed database design, and UML class diagrams for object-oriented systems throughout the development lifecycle.
• Audience: Chen diagrams are best for non-technical stakeholders, while ERDs and UML diagrams are more suitable for technical teams.
• Level of detail required: Chen diagrams for high-level concepts, ERDs for detailed database specifications, and UML class diagrams for a balance of concepts and details.
• System type: ERDs for relational databases, UML class diagrams for object-oriented systems, and Chen diagrams for general conceptual modeling.

Chen Entity-Relation Diagram

The Chen Entity-Relation Diagram is used for conceptual or logical modeling. It represents entities, their attributes, and relationships. Attributes are depicted as separate elements (ovals) rather than as rows within entities. Also, relationships are defined with separate diamond boxes.

Key Features

• Entities are represented as rectangles
• Attributes are shown as ovals connected to entities
• Relationships are depicted as diamonds connecting entities
• Does not specify data types or implementation details

Chen ER Diagram Example

Chen ER Diagram Example

Strengths

• Conceptual Clarity: By focusing on entities and relationships without diving into detailed data types and constraints, Chen diagrams are excellent for high-level data modeling.
• Flexibility: These diagrams are not tied to any specific database technology, making them versatile and portable.
• Simplification: They provide a clear overview of the data structure, which is beneficial during the early stages of database design.

Weakness

• Lack of Detail: The absence of specific data types and constraints means these diagrams are not suitable for detailed database implementation.

When to Use

• During the initial stages of database design to create a high-level conceptual model.
• When communicating with non-technical stakeholders who need to understand the overall data structure without delving into technical specifics.
• When designing databases that need to be portable across different database systems.

Entity-Relationship (ER) Diagram

An Entity-Relationship Diagram is a powerful tool used in database design to visually represent the data structure. In an ER diagram, entities are defined as tables, with attributes listed as rows within these tables. Each attribute is detailed with its data type, nullability, and other database-specific options.

Key Features

• Entities are represented as rectangles
• Attributes are listed as rows within entities
• Relationships are shown as lines connecting entities
• Cardinality and participation are indicated on relationship lines
• Provides specific data types, nullability, and other database options

ER Diagram Example

Data model example using Entity-Relationship Diagram notation

Strengths

• Precision: ER diagrams provide an exact specification of data types, constraints, and relationships, making them ideal for physical database design.
• Clarity: The tabular representation of attributes within entities (tables) is straightforward and aligns closely with the eventual implementation in a relational database.
• Detail-Oriented: They are excellent for specifying detailed database schemas, including primary keys, foreign keys, and indices.

Weaknesses

• Database-Specific: These diagrams are often tailored to specific database management systems, which can limit their portability.

When to Use

• When designing the physical database schema.
• When you need to communicate precise details to database administrators and developers.
• When you need to ensure all database constraints and relationships are explicitly defined.

UML Class Diagram

UML Class Diagrams are a staple in software engineering, used to model the static structure of a system. They represent classes (analogous to entities) and their relationships, with attributes and methods encapsulated within the class symbols.

Key Features

• Classes (entities) are represented as rectangles with three compartments: name, attributes, and methods
• Relationships are shown as lines with various notations for different types (association, aggregation, composition, inheritance)
• Can include data types and other implementation details
• Supports object-oriented concepts

Class Diagram Example

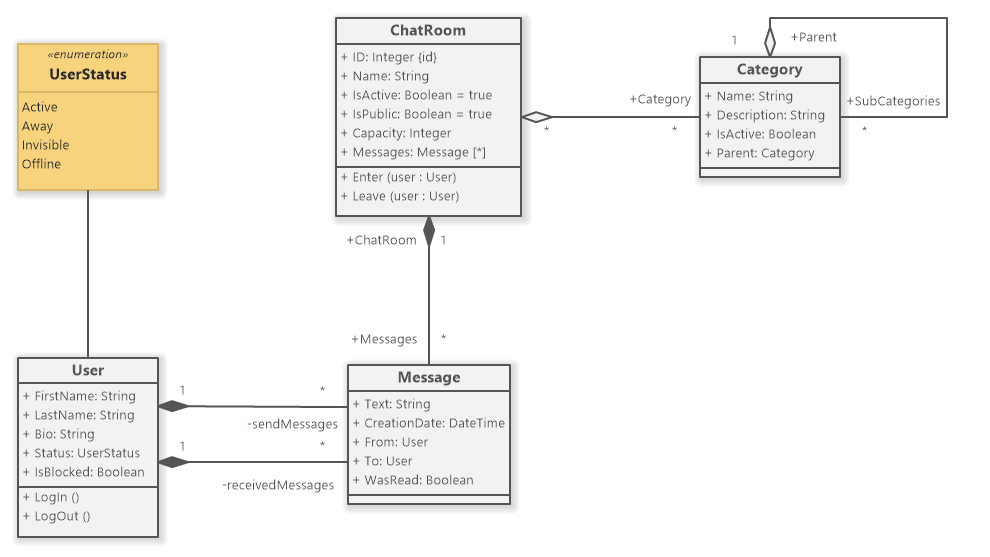

Data model example using the UML Class Diagram notation

Strengths

• Object-Oriented Design: UML class diagrams align well with object-oriented programming paradigms, making them ideal for designing databases for object-oriented applications.
• Comprehensive: They can include both data attributes and methods (functions), providing a more holistic view of the system.
• Standardization: UML is a standardized modeling language, widely understood and used across various industries.

Weaknesses

• Complexity: The inclusion of methods and the detailed object-oriented structure can make UML diagrams complex.
• Not Database-Specific: While useful for overall system design, UML diagrams may lack some specific details required for physical database design.

When to Use

• When designing databases for applications that use object-oriented programming languages.
• When you need to provide a detailed model that includes both data and behavior.
• When collaborating with software engineers who are accustomed to UML.
