By utilizing the diverse software diagram types offered by Software Ideas Modeler, you can enhance the clarity and quality of your software documentation, ultimately leading to more robust and well-understood software solutions.

When designing software, effective software diagrams are crucial for understanding the main characteristics and workflows. Good documentation is especially vital in today's era of rapid software development, often driven by artificial intelligence. Software Ideas Modeler offers multiple diagram types that assist in various stages of development.

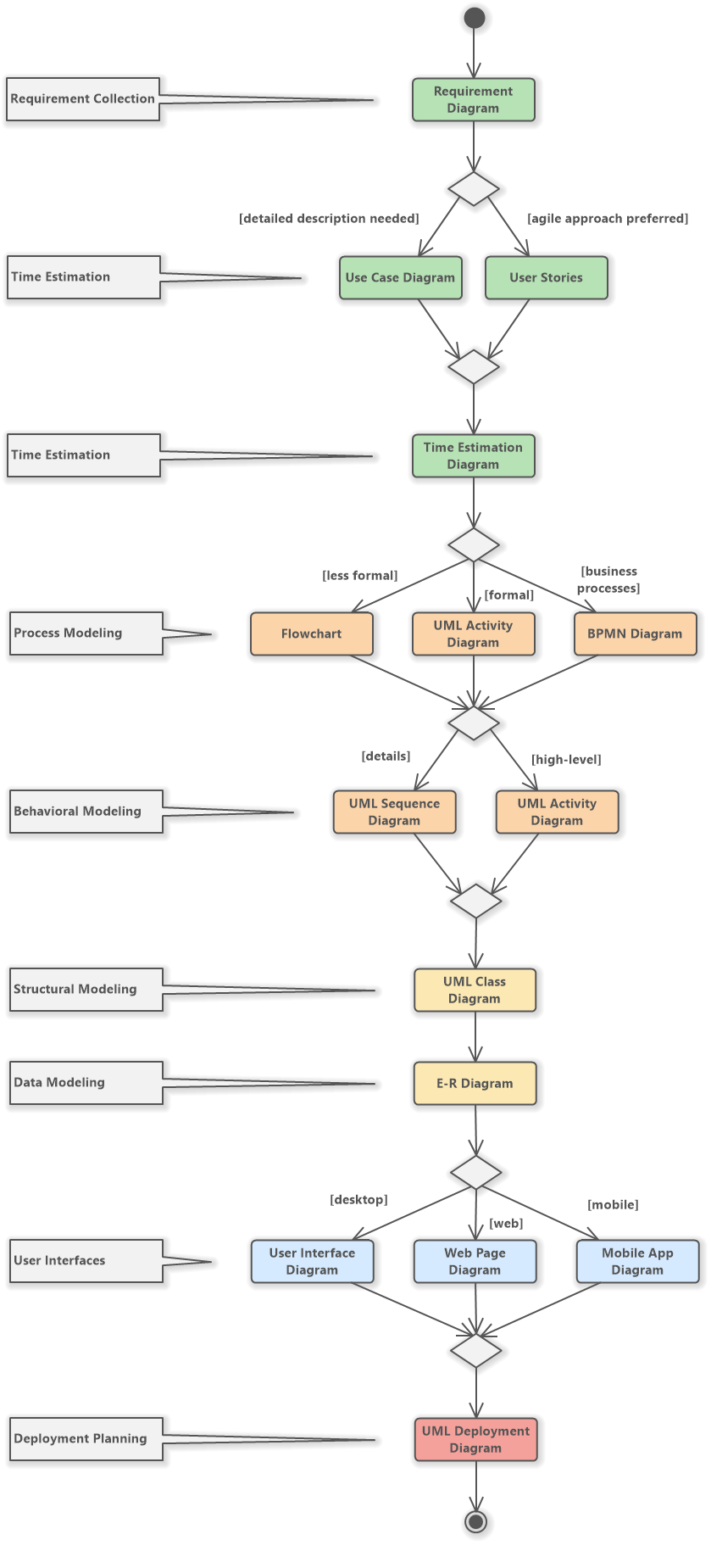

Diagrams in Software Development Process
Diagrams in Software Development Process

Requirements and Use Cases

In the initial phase of software development, clear requirement specifications are essential. This can be achieved using requirement diagrams. For defining use cases, UML use case diagrams are highly effective, especially if you prefer agile methodologies. User stories can also be used to capture requirements in a more flexible manner.

Time Estimation

Accurate time estimation is a critical aspect of successful software development. It helps in planning, resource allocation, setting realistic deadlines, and managing stakeholder expectations. Proper time estimation ensures that projects stay on track and within budget, minimizing the risks of delays and cost overruns.

Software Ideas Modeler offers a unique and graphical approach to time estimation through the Time Estimation Diagram. This tool provides a visual representation of tasks and projects, allowing you to estimate the required time effectively.

Workflow and Process Modeling

To model complex business scenarios, you can utilize flowcharts, UML activity diagrams, or BPMN diagrams. These tools help in visualizing the workflow and ensuring all business processes are accurately represented.

Behavioral Modeling

To describe the key aspects of software behavior, use activity diagrams for a high-level view or sequence diagrams for more specific, implementation-level details. These diagrams focus on message and event exchanges, providing a clear picture of interactions within the system.

Structural Modeling

Identifying the core classes in your software is a critical step. UML class diagrams allow you to represent these classes and their relationships. For parts of the software that have changing states, UML state machine diagrams are ideal for depicting state transitions and behaviors.

Data Modeling

Entity-Relationship Diagrams (ERD) are essential for specifying the data model of your software. They provide a visual representation of the database structure, detailing the entities, their attributes, and the relationships between them. This structured approach is vital for ensuring data integrity, consistency, and efficient database design.

Software Ideas Modeler offers powerful features that enhance the data modeling process:

  • Starting with a Fresh or Existing Model: You can begin with a blank canvas to create a new data model from scratch or import an existing database structure. This flexibility allows you to either innovate freely or build upon your current database architecture.
  • Specification of Initial Data: The tool allows you to specify initial data for your entities. This feature is particularly useful for setting up sample data for testing or pre-populating the database with essential information.
  • SQL Script Generation: At the end of the modeling process, Software Ideas Modeler can generate SQL scripts for your database. This automation saves time and reduces the likelihood of errors, ensuring that your database schema is accurately translated into SQL commands ready for implementation.

User Interface Design

User Interface (UI) diagrams specify the appearance and layout of screens. Screen flow diagrams connect these UI diagrams, defining user behavior scenarios and ensuring a seamless user experience.

UI diagrams provide a clear visual representation of the user interface, making it easier for stakeholders to understand and evaluate the design. This visualization helps in identifying potential usability issues early in the development process.

By mapping out the user interface and flow, UI diagrams help in optimizing the user experience. Designers can experiment with different layouts and interactions to find the most intuitive and efficient design.

In Software Ideas Modeler, various UI diagrams cater to different application types and design needs:

  • User Interface Diagram: This is used for designing desktop applications and general UI layouts. It helps in visualizing the structure and elements of an application's interface, ensuring that all components are logically arranged and accessible.
  • Web Page Diagram: Specifically tailored for web applications, this diagram focuses on the layout and functionality of web pages. It allows developers and designers to map out navigation, content placement, and interactive elements, ensuring a seamless and intuitive user experience.
  • Mobile App Diagram: Designed for mobile applications, this diagram emphasizes the unique aspects of mobile interfaces. It helps in planning the layout and user flow, ensuring the app is user-friendly and efficient on mobile devices.

Deployment Planning

Once your software solution is implemented, planning its deployment is crucial. UML deployment diagrams assist in mapping out the deployment strategy, ensuring efficient and effective distribution of the software across various environments.
