TypeScript UML Diagram Tool

Software Ideas Modeler

Download TypeScript UML Tool for Free

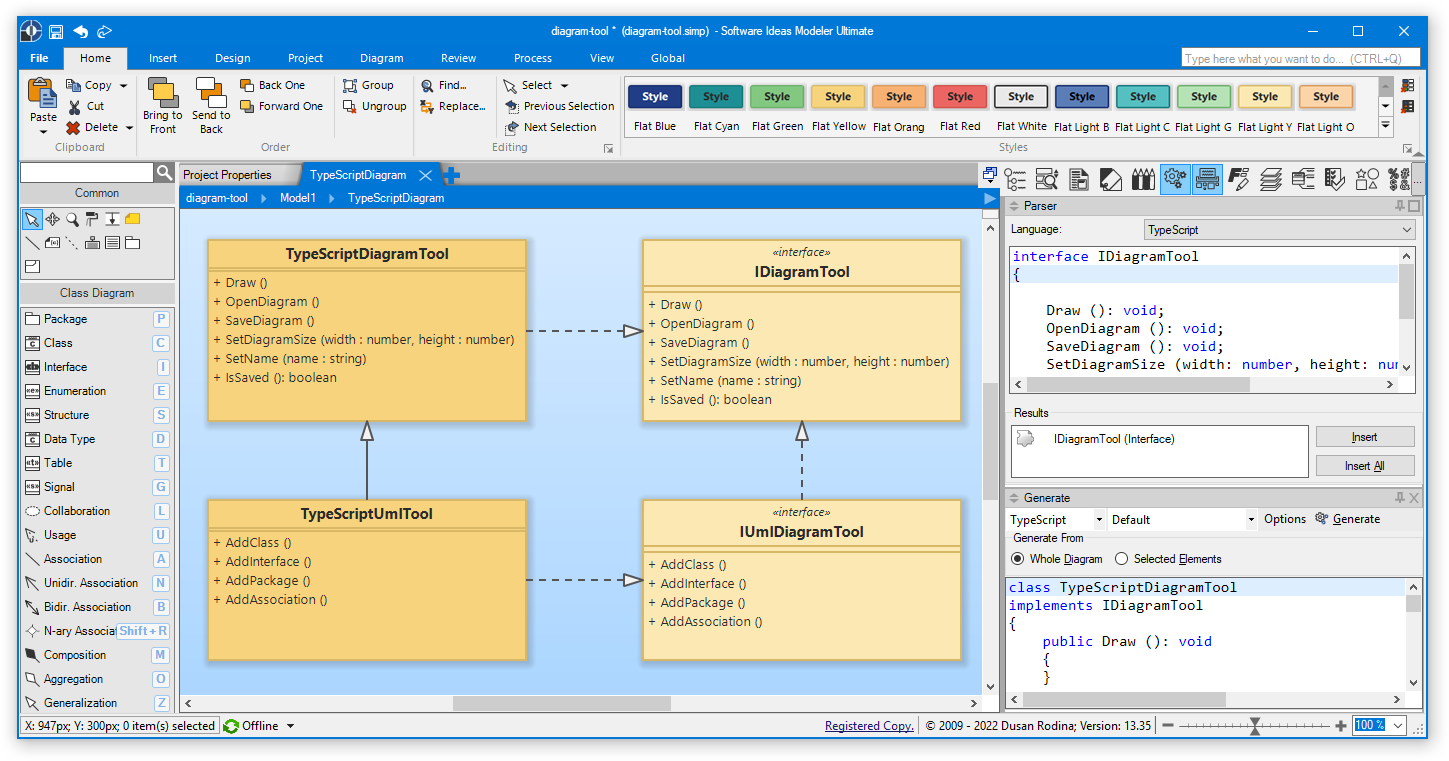

Software Ideas Modeler is a UML tool with TypeScript support. You can design all types of UML diagrams and many others. The software includes a TypeScript type set and reverse-engineering and source code generation tools designed for TypeScript. The best diagram for the interface structure design is UML Class Diagram. Our TypeScript UML generator allows you to turn your class diagrams into code with interface definitions and scaffolds for project classes.

  • Understand complex TypeScript projects
  • Enhance collaboration and documentation
  • Download our software to start your journey towards efficient software design

You might also find flowcharts, NSD (Nassi-Shneiderman) diagrams, and activity diagrams helpful for algorithm design.

TypeScript UML Diagram Tool
TypeScript UML Diagram Tool

Source Code Generation

his feature enables the automatic creation of syntactically correct TypeScript source code from UML diagrams. Users can design their system architecture using UML, and the tool generates the corresponding TypeScript code, saving time and reducing manual coding errors.

Reverse Engineering - Code to Diagram

This functionality allows for the conversion of existing TypeScript code into UML diagrams. It helps in visualizing the structure and relationships in the codebase, making it easier to understand, analyze, and document complex software systems.

Navigation to Reverse Engineered Code

This feature allows users to directly navigate from the UML diagram in the editor to the corresponding reverse-engineered TypeScript code. By clicking on an element, attribute, or operation within the diagram, the tool opens the specific section of code related to that diagram component, streamlining the development process and enhancing code-diagram traceability.

Typescript UML Generator Key Features

  • Source Code Generation to Files
  • Source Code Generation to Text Box
    • Generation for Selected Elements
    • Generation for Entire Diagram
  • Class Generation
  • Interface Generation
  • Enumeration Generation
  • Doc Generation
  • Indentation Type and Size Settings

Elevate Your TypeScript Development

Ready to transform the way you design and understand TypeScript code? Discover our TypeScript UML Diagram Tool. With features like source code generation, reverse engineering, and a comprehensive TypeScript type set, streamline your development process. Visualize and navigate your code architecture effortlessly.

Other Programming Languages Support

Software Ideas Modeler also supports other programming languages:
